The most economical tool for spindle drawbar testing! Get a Clamprite Gage and find out if your spindles can still Clamprite!

Across manufacturing sectors, machinery being damaged by cutting oil and dust is a common concern. Owing to the bulk packaging and increased cost of imported industrial cleaners, industries turn to domestic cleaners or alternative liquids like kerosene and petrol. However, other than being ineffective on aggressive oil stains, these also damage the performance and life of the machine.

Advantages

• No batteries or clumsy extension cords, no delicate electronics to adjust or burn out
• Clamprite Gages are designed for years of daily use in the shop environment.
• Tests the drawbar force of any machine.
• Force is read directly in Kgf & pounds - no conversions required.
• Drawbar testing takes less than one minute, so production time is barely affected.

The Clamprite Gage was designed for ;

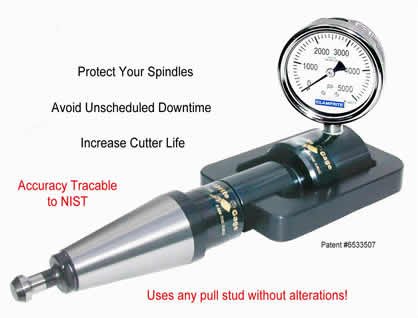

Accurate spindle tension testing right on the machine. The actual force exerted by the spindle drawbar mechanism is read directly on the dial, so there is no need for any calculations or conversions. Drawbar force checking is made easy using the Clamprite drawbar force gage

Drawbar testing takes less than one minute, so production time is barely affected. Its simple and rugged design requires no batteries, electrical cords, or delicate electronic components to pre-set, calibrate, or burn out.

The Clamprite Gage works on any machine using the pull-stud method of tool retention. And with the Clamprite HSK Spindle Adapter,. BT & HSK type spindles must be tested often. HSK drawbars have considerably higher drawbar force than other taper types of similar size, and must retain at least 75% of new spec. pressure in order to seat the arbor properly.
