Carbide Ball Nose

Carbide Ball Nose for Different Material Machining

  • Carbide Ball Nose for Alloy Steel Machining for Automotive Industry - C202, C206, C302, C304
  • Carbide Ball Nose for Stainless Steel Machining for Valve, Automotive, Food & Beverage, Oil & Gas Industry Applications - C323**
  • Carbide Ball Nose for Aluminium Machining - C212
  • Carbide End Mills for Die Steel & Tool Steel Machining for Die-Mold Industry - C402, C302, C304, C306, C307, C206, C323**
  • Wood / Non-Ferrous Machining Carbide End Mills - C102, C104, C109, C202, C204

Types of Carbide Ball Nose EndMills

  • General Purpose Machining Carbide End Mills Series : C102, C104, C109, C202, C204,
  • High Performance Carbide End Mills Series : C302, C304, C306, C307, C323, C402

# of Flutes of Carbide Ball Nose

  • 2-Flute Carbide Ball Nose or 3D Milling Tools - C104, C204, C206, C304, C306, C307, C402
  • 3-Flute Carbide Ball Nose - ****
  • 4-Flute Carbide End Mills - C102, C202, C302

Different Flute Construction Carbide Ball Nose

  • Ball Nose with 30* Helix Angle - C102, C202, C204
  • Ball Nose with 38* Helix Angle - C206, C302, C304
  • Variable Index Ball Nose - C302, C304
  • Rib-Processing or Deep Reach Ball Nose - C306

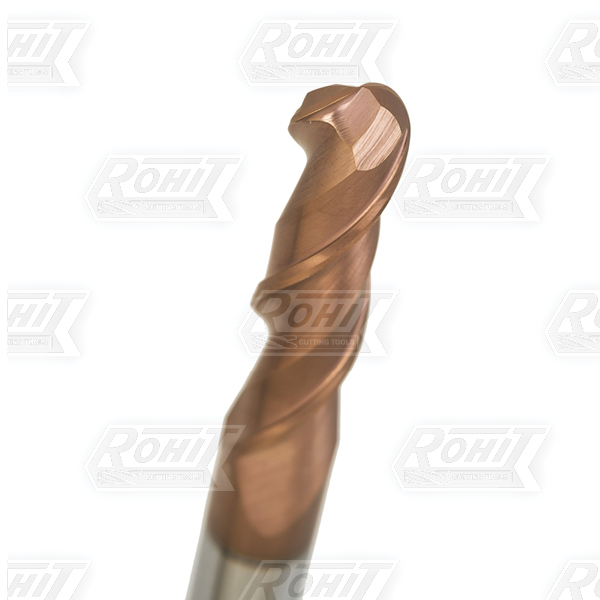

Carbide End Mills- 2F Nova Coated Ball Nose for Hard Dies Machining-304 Series
Solid Carbide Ball Nose 4X
  • Nano Grain (NG) Carbide Substrate
  • Carbide Ball Nose End Mills produced from this substrate are meant for Super Performance Milling applications
  • These Carbide Ball Noses are meant for Stable milling machines with quality holding systems with TIR < 10 microns
  • Best for High Feed Machining or High Speed Machining Milling processes

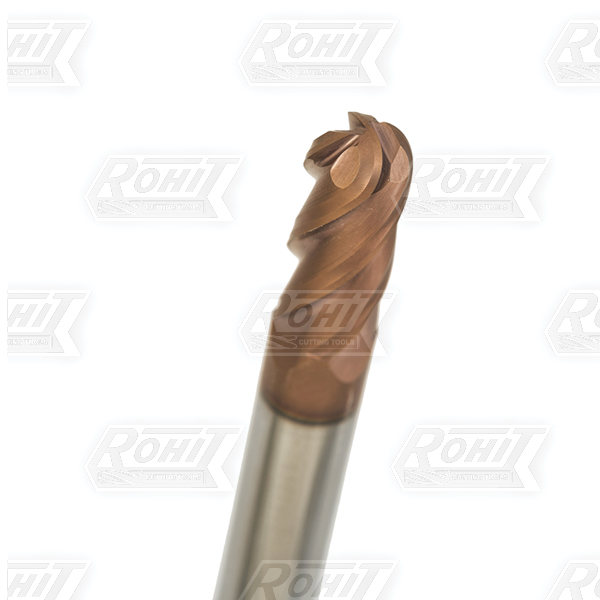

Carbide End Mills- 4F Nova Coated Ball Nose for Die machining upto 60HRc - 302
Solid Carbide Ball Nose 3X
  • Ultra Micro Fine Grain (UMG) Carbide Substrate
  • Carbide Ball Nose End Mills produced from this substrate are meant for High Performance Milling applications
  • These Carbide End Mills will improve your productivity manyfolds and reduce your Cost Per Component (CPC) in comparison to 1X Grade of Carbide End Mills.

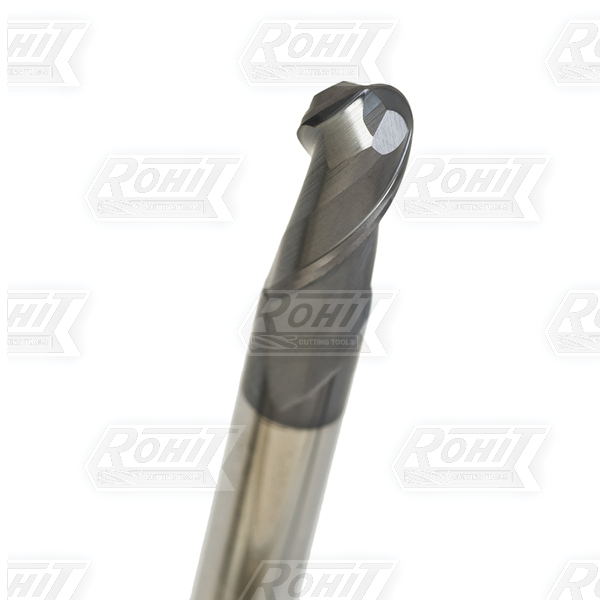

Carbide-End-Mills-2F-Ball-Nose-for-Die-machining-upto-55HRc-206Series
Solid Carbide Ball Nose 1X
  • Sub-Micro Fine Grain (SMG) Carbide Substrate
  • Carbide Ball Nose End Mills produced from this substrate are meant for General to High Performance Milling applications
  • These Carbide Ball Nose End Mills will bring your CPC to lower levels & improve your productivity in comparison to 0X Grade however for best results & Even Higher Productivity gains in your milling process go for our 3X Grade of Ball Nose End Mills

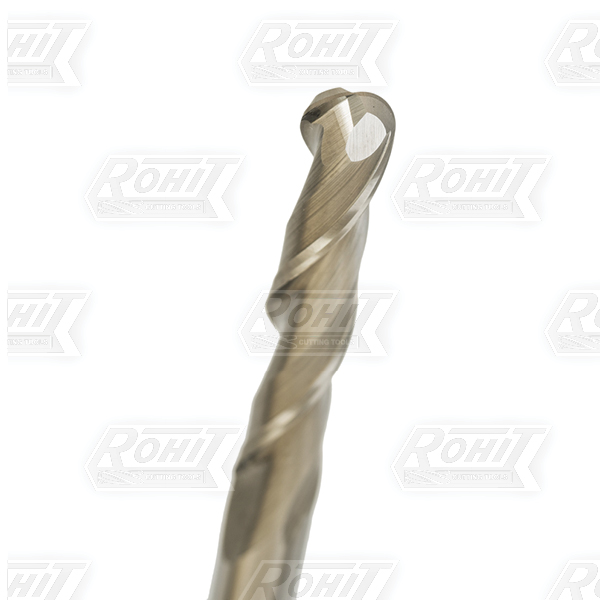

Carbide End Mills- 2F Ball Nose for Wood Machining - 104 Series
Solid Carbide Ball Nose 0X
  • Micro Grain (MG) Carbide Substrate
  • Carbide Ball Nose End Mills produced from this substrate are meant for General Milling applications
  • These Carbide Ball Noses are meant for shorter batch processing , for higher production runs & high performance ball noses kindly go for our 3X Grade of Carbide Ball Noses
