Carbide Flat End Mills

Carbide End Mills for Different Material Machining

  • Carbide End Mills for Alloy Steel Machining for Automotive Industry - C330, C322, C222
  • Carbide End Mills for Stainless Steel Machining for Valve, Automotive, Food & Beverage, Oil&Gas Industry Applications - C330, C333, C322
  • Carbide End Mills for Titanium & Nickel Alloys Machining - C430, C433, C330, C333
  • Carbide End Mills for Aluminium Machining - C211 , C213
  • Carbide End Mills for Die Steel & Tool Steel Machining for Die-Mold Industry - C301, C205,
  • Wood / Non-Ferrous Machining Carbide End Mills - C101, C103, C107, C108, C118

Types of Carbide End Mills

  • General Purpose Machining Carbide End Mills Series : C101~C119 , C201~C204
  • High Performance Carbide End Mills Series : C301~C308, C401~407, C330, C333, C430, C433, C322, C222
Solid Carbide Flat End Mill 4X
Solid Carbide Flat End Mill 4X
  • Nano Grain (NG) Carbide Substrate
  • Carbide End Mills produced from this substrate are meant for Super Performance Milling applications
  • These Carbide End Mills are meant for Stable milling machines with quality holding systems with TIR < 10 microns
  • Best for High Feed Machining or High Speed Machining Milling processes
Solid Carbide Flat End Mill 3X
Solid Carbide Flat End Mill 3X
  • Ultra Micro Fine Grain (UMG) Carbide Substrate
  • Carbide End Mills produced from this substrate are meant for High Performance Milling applications
  • These Carbide End Mills will improve your productivity manyfolds and reduce your Cost Per Component (CPC) in comparison to 1X Grade of Carbide End Mills.

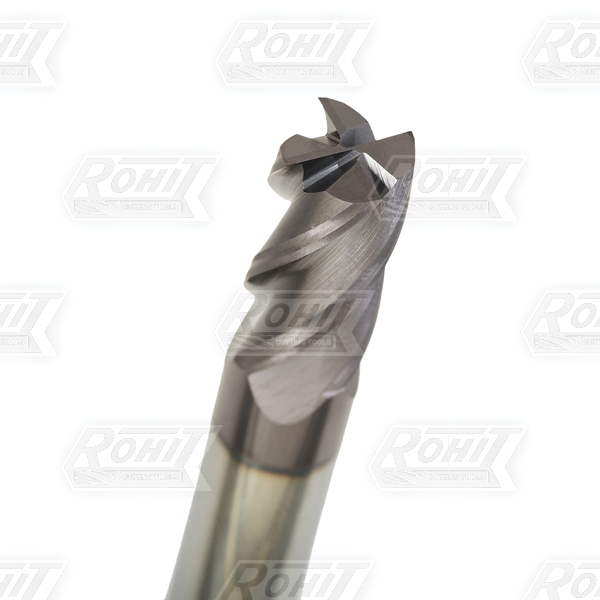

Solid Carbide Flat End Mill 1X
Solid Carbide Flat End Mill 1X
  • Sub-Micro Fine Grain (SMG) Carbide Substrate
  • Carbide End Mills produced from this substrate are meant for General to High Performance Milling applications
  • These Carbide End Mills will improve your productivity manyfolds and reduce your Cost Per Component (CPC) in comparison to 1X Grade of Carbide End Mills.

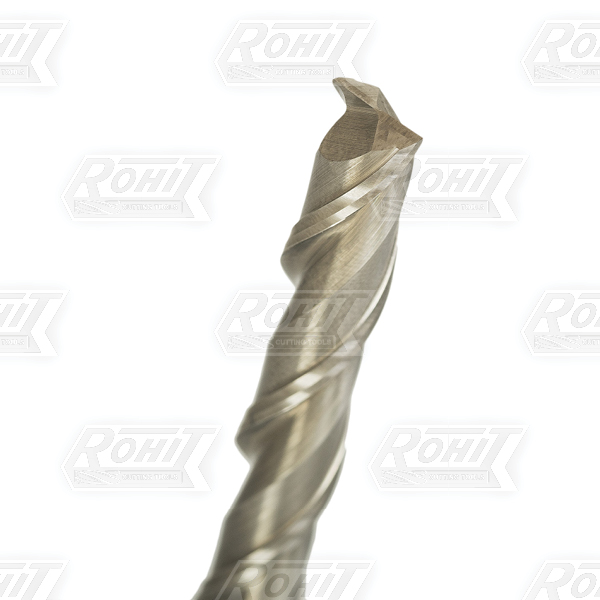

Solid Carbide Flat Endmill 0X
Solid Carbide Flat Endmill 0X
  • Micro Grain (MG) Carbide Substrate
  • Carbide End Mills produced from this substrate are meant for General Milling applications
  • These Carbide End Mills are meant for Shorter Batch Runs ; if you are looking for Higher Production Runs or High performance milling then go for our 3X Grade of End Mills.
